Swing Check Valve

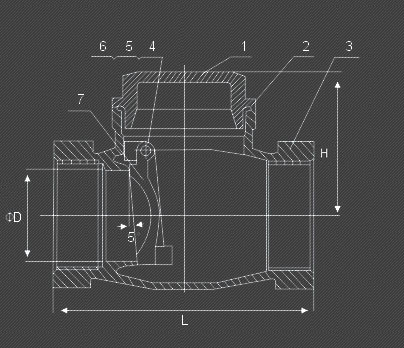

PIC-(Swing Check Valve)
Swing Check Valve旋启式止回阀
材质MATERIALS
| ITEM | DESIGNATION | MATERIAL | ||
| 1 | BONNET | CF8/CF8M | ||
| 2 | GASKET | PTFE | ||
| 3 | BODY | CF8/CF8M | ||
| 4 | HANGER PIN | 304 | ||
| 5 | PLUG GASKET | PTFE | ||
| 6 | PLUG | 304 | ||
| 7 | DISC | CF8/CF8M | ||
尺寸DIMENSIONS
| SIZE | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2'' |
| D | 15 | 20 | 25 | 32 | 40 | 50 |
| L | 65 | 80 | 90 | 105 | 120 | 140 |
| H | 43 | 53 | 60 | 60 | 75 | 79 |
